Compact strength. Exceptional as standard.

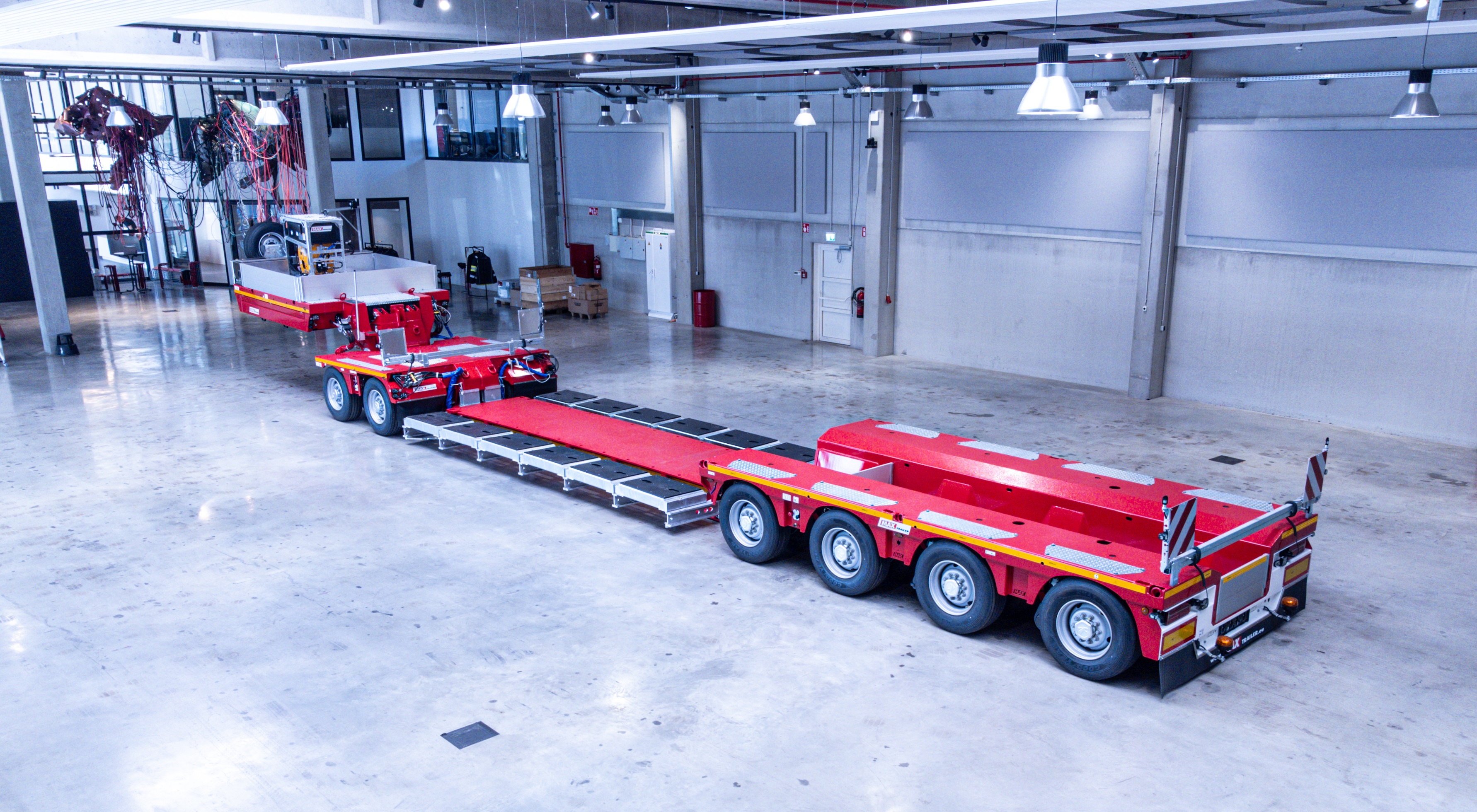

MAX710 is the modular lowbed semi-trailer with which MAX Trailer expands its range in the high payload segment. Vehicles with 6 to 8 pendle axles set new standards for efficiency and value for money. Remarkably compact, powerful, and optimized for weight. MAX710 consists of a gooseneck, a detachable front bogie with 2 or 3 axles, a lowbed platform—either excavator-style or with side beams—and a rear bogie with 4 or 5 axles. The gooseneck offers a technical fifth-wheel load of 38 tonnes.
The new vehicle for high payloads
Highlights
Vehicle type: Modular lowbed semi-trailer (pendle)
Axle configuration: 6–8 pendle axles (2+4, 2+5, 3+4, or 3+5)
Front bogie: Detachable, 2 or 3 axles
Rear bogie: 4 or 5 axles, kingpin coupling
Tyres: 19.5"
Suspension: Air
Standard width: 2,850 mm
Fifth-wheel load (gooseneck): 38 tonnes (technical)
Lowbed platform: Excavator-style with adjustable outriggers / Side beams with fixed floor

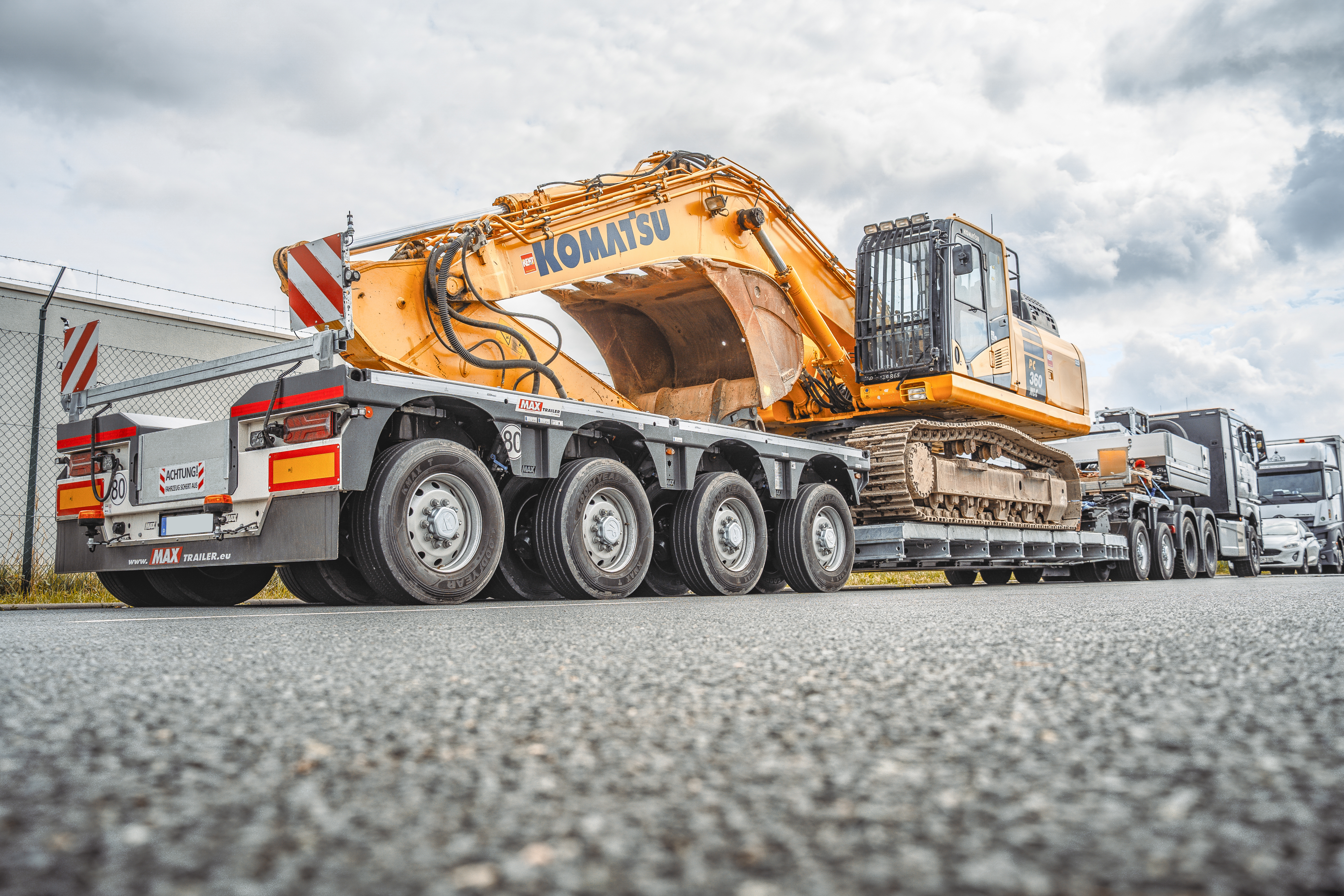

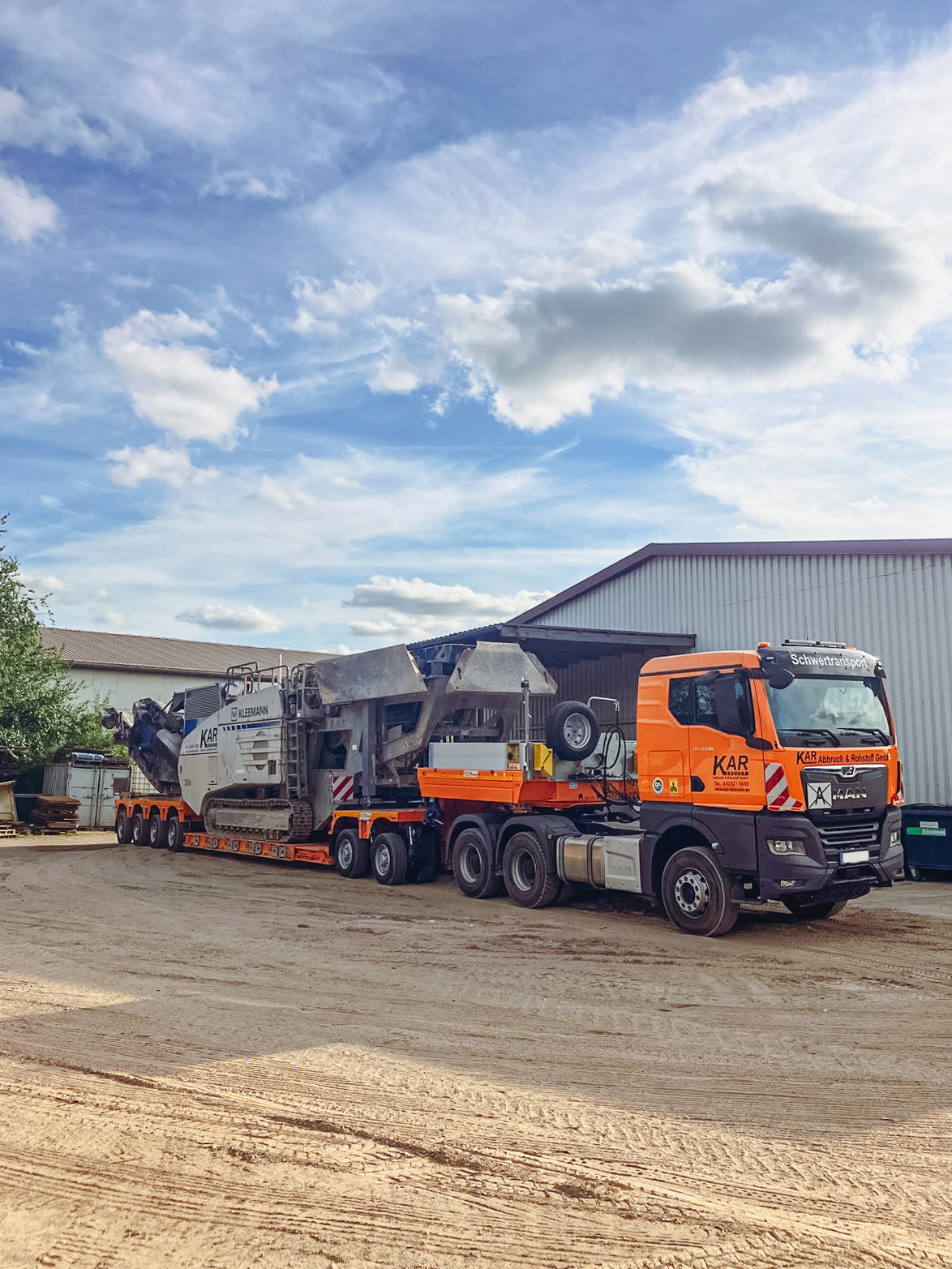

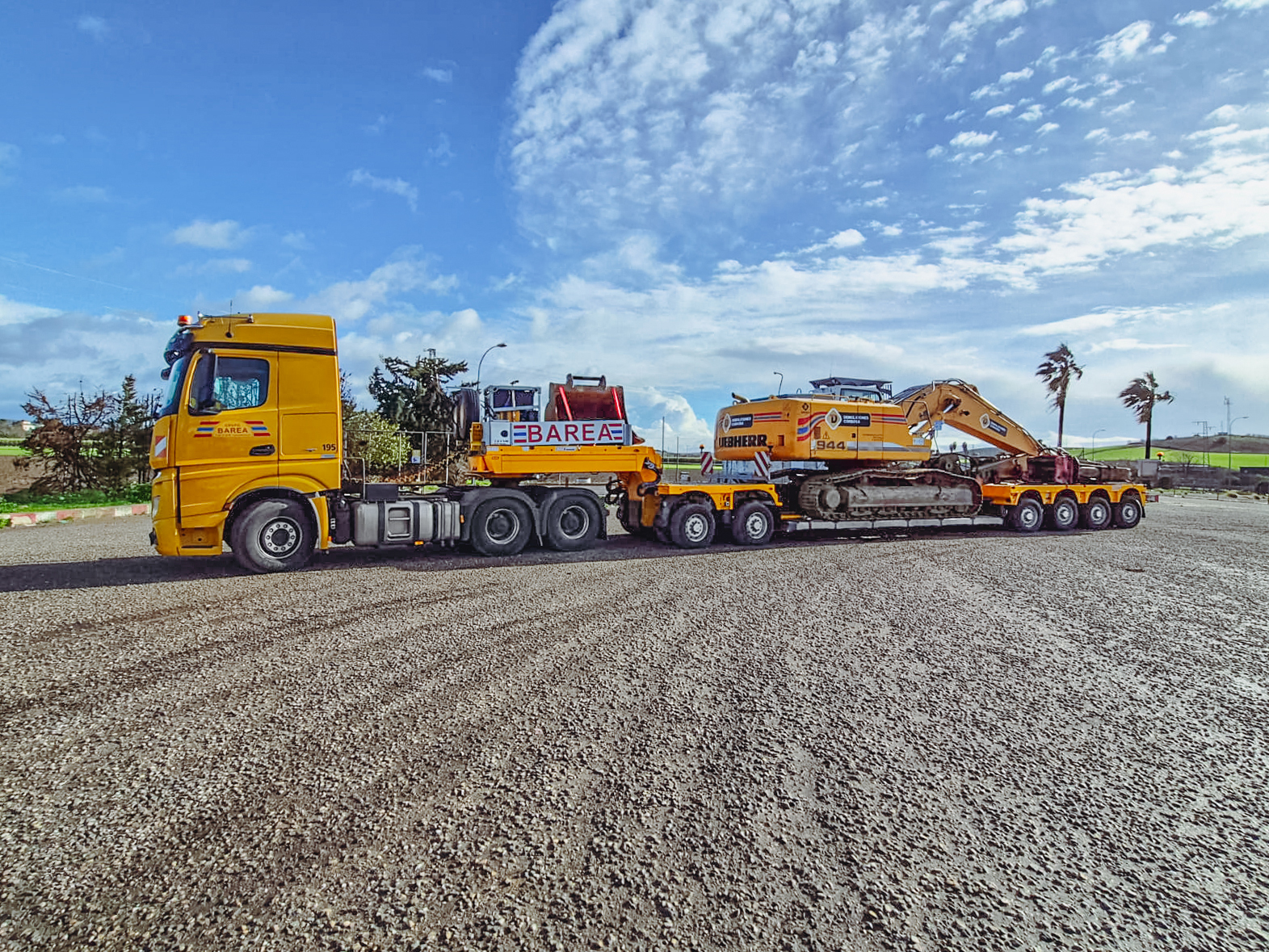

Applications: Construction, heavy and industrial transport, crane equipment, road service
We always strive to be close to you! Contact us for further information.
