Operational flexibility– two lengths + flatbed/curtain-sided versions = quick adaption to multiple cargo types.
Superior load capacity– up to 16 t on the coupling → more payload, fewer trips, optimized cost/ton.

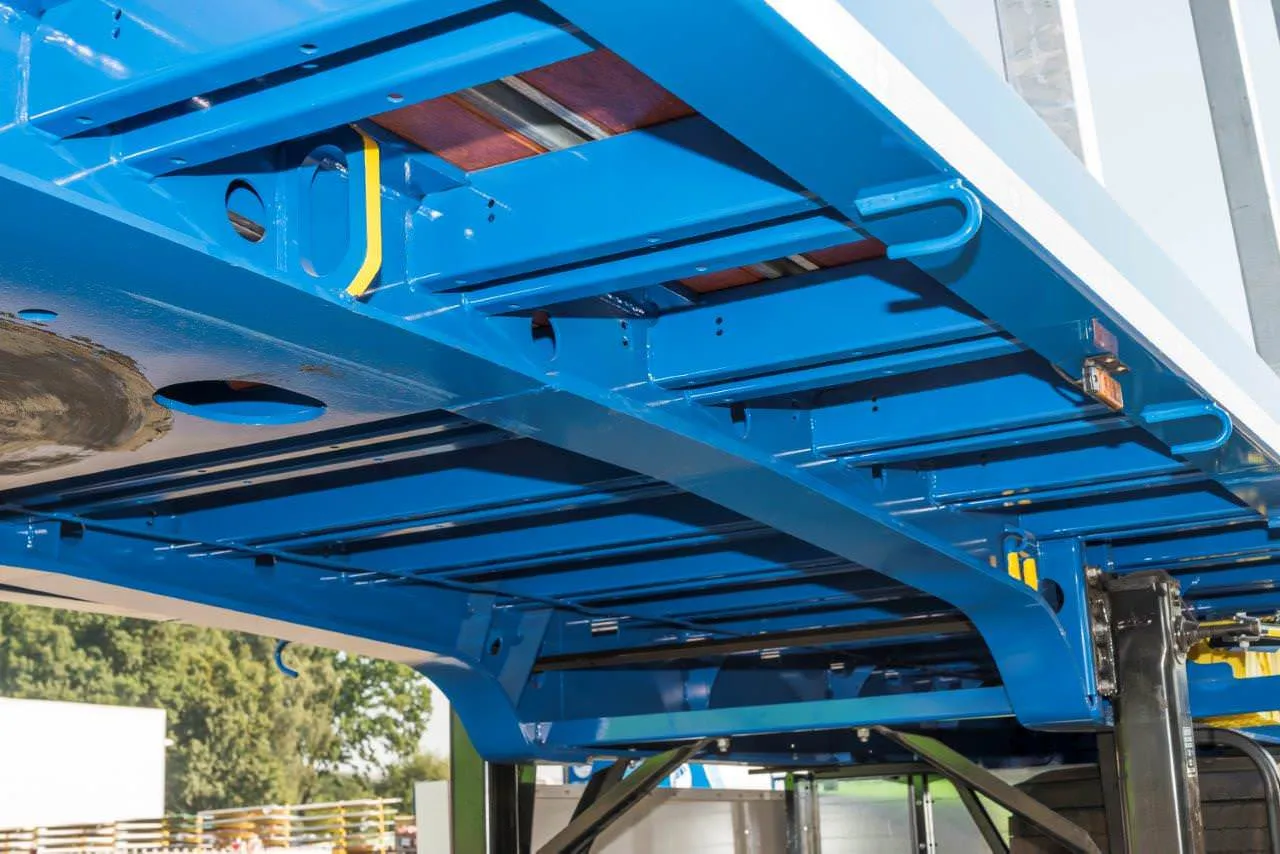

Performance in demanding conditions– reinforced chassis = durability in heavy use and longer service life.
Versatility in applications– suitable for both general transport and heavy-duty tasks.
Fewer technical limitations = more usage and monetization opportunities for your equipment.
Kingpin load (up to): 16,000 kg
Axle load (technically possible): 27,000 kg
Maximum gross weight (up to): 43,000 kg
Curb weight: approx. 6,700 kg
Payload capacity (up to): 36,300 kg
Axle spacing: 1,310 / 1,310 mm
Front construction height: 225 mm
Coupling height: 1,150 - 1,450 mm
Length: 13,480 mm
Width: 2,480 mm
Turning radius: 1,995 mm
